GX Hard Hose Range
Designed for Superior Reliability
The RM hard hose irrigators in the GX range are cleverly designed and manufactured with highest quality materials. This results in a hard hose or traveling irrigator that it easy to operate, and requires very little maintenance. The GX range is also easy to move due to the smart wheel and chassis design.
540GX Hard Hose
+ Standard Hose Sizes
50mm hose, 160m long
50mm hose, 250m long
63mm hose, 190m long
+ Best uses for this machine
A smaller hard hose machine for smaller paddocks, perfect for hobby farms, large parks or green spaces. The smaller size allows for towing by smaller equipment. This hard hose machine has flows of up to 5.9L/s and a run length of up to 250m.
+ Standard inclusions
Sime sprinkler
Variable width sprinkler trolley on 3 wheels
4.5m inlet hose and fittings
Unique self drain turbine
3 speed gear box
PTO input shaft in gearbox
Selection of 4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
560GX hard hose
+ Standard Hose Sizes
63mm hose, 250m long
63mm hose, 300m long
70mm hose, 330m long
75mm hose, 200m long
75mm hose, 250m long
82mm hose, 160m long
+ Best uses for this machine
A smaller hard hose machine for smaller paddocks, perfect for hobby farms. Also useful for dairy effluent application. The smaller size allows for towing by smaller equipment. This hard hose machine has flows of up to 10.2L/s and a run length of up to 340m.
+ Standard inclusions
Sime sprinkler
Variable width sprinkler trolley with 3 wheels
4.5m inlet hose and fittings
Unique self drain turbine mounted directly onto reduction gearbox
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
570GX hard Hose
+ Standard Hose Sizes
75mm hose, 320m long
75mm hose, 360m long
82mm hose, 250m long
82mm hose, 300m long
82mm hose, 330m long
90mm hose, 230m long
90mm hose, 300m long
90mm hose, 310m long
100mm hose, 220m long
+ Best uses for this machine
A popular sized hard hose machine for medium paddocks. This model is very popular for dairy farms for standard irrigation or dairy effluent application. Easily towed by standard farm tractors. This machine has flows of up to 16.6L/s and a run length of up to 350m
+ Standard inclusions
Sime gun
Variable width sprinkler trolley with 3 wheels
Hydraulically operated and telescopic rear legs powered by a tractor
4.5m inlet hose and fittings
Unique self drain turbine mounted directly onto reduction gearbox
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis

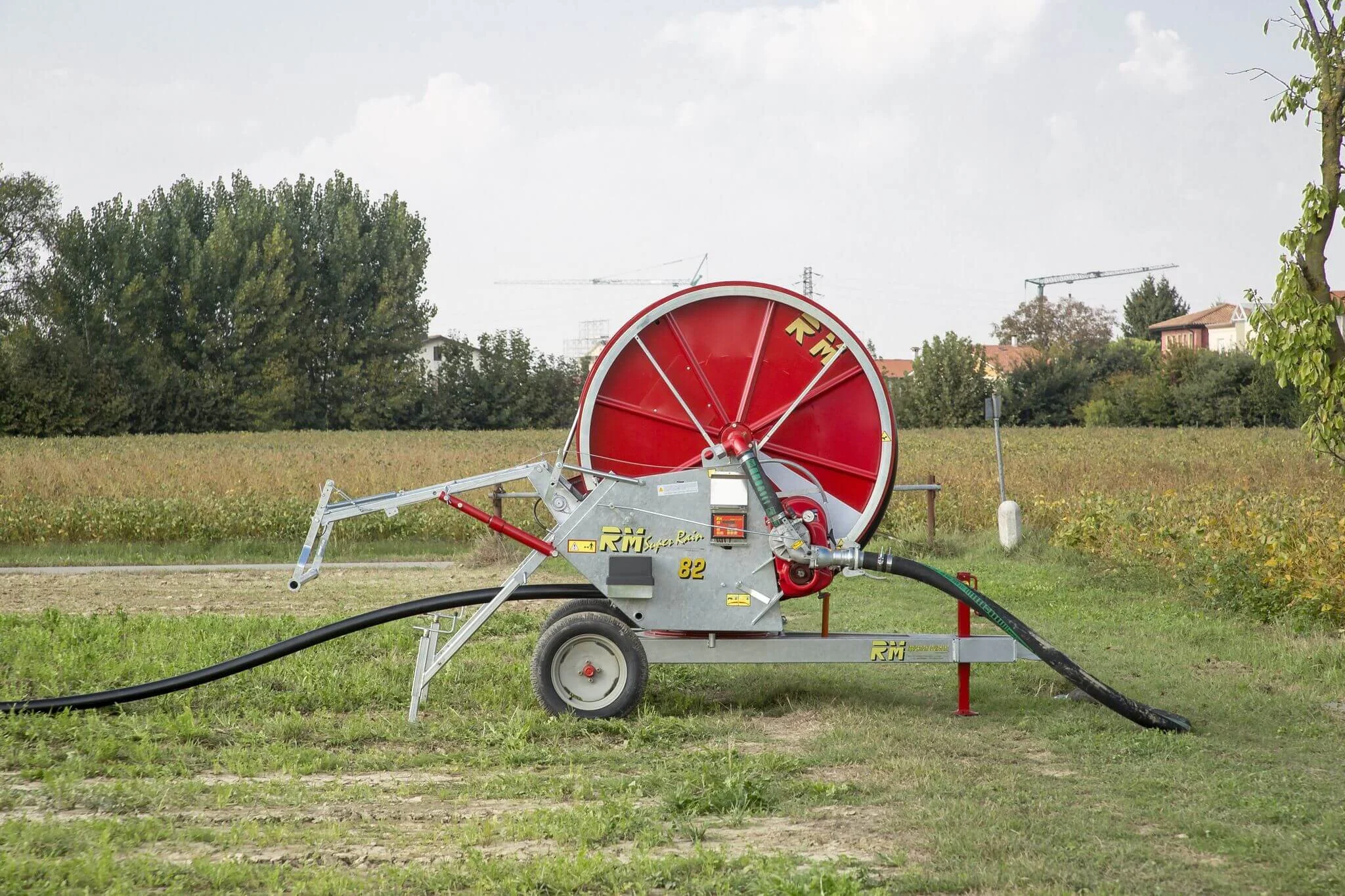

581GX hard Hose
+ Standard Hose Sizes
82mm hose, 350m long
82mm hose, 400m long
82mm hose, 430m long
90mm hose, 320m long
90mm hose, 350m long
90mm hose, 370m long
90mm hose, 400m long
100mm hose, 270m long
100mm hose, 300m long
+ Best uses for this machine
A versatile hard hose model with a wide range of hose options for a wide range of farming enterprises. This hard hose machine has flows of up to 18.8L/s and a run length of up to 430m
+ Standard inclusions
Sime gun
Variable width sprinkler trolley with 3 wheels
Hydraulic drum rotation, front jack and rear stabiliser legs
Automatic gun lift
Water inlet on both sides
Program Rain 10-12 electronic controls
4.5m inlet hose and fittings
Unique self drain turbine mounted directly onto reduction gearbox
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
690GX hard hose
+ Standard Hose Sizes
90mm hose, 400m long
90mm hose, 430m long
90mm hose, 450m long
90mm hose, 480m long
100mm hose, 360m long
100mm hose, 400m long
100mm hose, 420m long
110mm hose, 300m long
110mm hose, 350m long
110mm hose, 370m long
120mm hose, 270m long
120mm hose, 290m long
125mm hose, 250m long
125mm hose, 270m long
+ Best uses for this machine
One of our most popular hard hose models for cropping clients as well as beef and sheep producers. This hard hose machine has flows of up to 30.55L/s and a run length of up to 520m
+ Standard inclusions
Sime Reflex gun or for users who prefer gear driven guns the Sime Mariner gun can be substituted
Variable width sprinkler trolley
Hydraulic drum rotation, front jack and rear stabiliser legs
Automatic gun lift
Water inlet on both sides
Program Rain 10-12 electronic controls
4.5m inlet hose and fittings
Unique self-drain turbine
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
790GX hard hose
+ Standard Hose Sizes
100mm hose, 500m long
110mm hose, 400m long
110mm hose, 420m long
110mm hose, 450m long
110mm hose, 480m long
120mm hose, 320m long
120mm hose, 360m long
125mm hose, 300m long
125mm hose, 340m long
+ Best uses for this machine
Our most popular hard hose irrigator for cropping clients is the 790GX with a 110mm by 450m hose. This is also popular with beef and sheep producers. This hard hose machine has flows of up to 30.55L/s and a run length of up to 500m
+ Standard inclusions
Sime Reflex gun or for those users who prefer gear driven guns the Sime Mariner gun can be substituted
Variable width sprinkler trolley
Hydraulic drum rotation
Hydraulic front jack
Hydraulic rear stabiliser legs
Automatic gun lift
Water inlet on both sides
Program Rain 10-12 electronic controls
4.5m inlet hose and fittings
Unique self-drain turbine
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
890GX hard Hose
+ Standard Hose Sizes
100mm hose, 550m long*
100mm hose, 600m long*
100mm hose, 650m long*
110mm hose, 450m long*
110mm hose, 500m long*
110mm hose, 520m long*
110mm hose, 550m long*
110mm hose, 570m long*
120mm hose, 400m long*
120mm hose, 440m long*
125mm hose, 370m long
125mm hose, 400m long
125mm hose, 420m long
135mm hose, 300m long
135mm hose, 350m long
135mm hose, 380m long
140mm hose, 300m long
150mm hose, 280m long
+ Best uses for this machine
A big hard hose irrigator for the larger farms with larger run lengths. A wide range of hose options are available for every situation. This hard hose machine has flows of up to 48.6L/s and a run length of up to 680m
+ Standard inclusions
Sime Reflex gun for the above models marked with *. Sime Explorer gun available on the rest. For those who prefer to water with a gear driven gun the Mariner gun can be substituted upon request
Variable width sprinkler trolley
Hydraulic drum rotation, front jack and rear stabiliser legs
Automatic gun lift
Water inlet on both sides
Program Rain 10-12 electronic controls
4.5m inlet hose and fittings
Unique self-drain turbine
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
990GX hard Hose
+ Standard Hose Sizes
110mm hose, 650m long*
120mm hose, 550m long*
120mm hose, 580m long*
120mm hose, 600m long*
125mm hose, 450m long
125mm hose, 500m long
125mm hose, 530m long
125mm hose, 550m long
125mm hose, 570m long
135mm hose, 450m long
135mm hose, 500m long
135mm hose, 540m long
140mm hose, 450m long
140mm hose, 500m long
+ Best uses for this machine
A big hard hose irrigator for the larger farms with larger run lengths. A wide range of hose options are available for every situation. This hard hose machine has flows of up to 47.2L/s and a run length of up to 700m
+ Standard inclusions
Sime Reflex gun for the above models marked with *. Sime Explorer gun available on the rest. For those who prefer to water with a gear driven gun the Mariner gun can be substituted upon request.
Variable width sprinkler trolley
Hydraulic drum rotation, front jack and rear stabiliser legs
Automatic gun lift
Water inlet on both sides
Program Rain 10-12 electronic controls
4.5m inlet hose and fittings
Unique self-drain turbine
Four speed gearbox
PTO input shaft in gearbox
4 nozzles
Pressure gauge
Winding handle
Speed equalizer
Safety guards
Hot dipped galvanised chassis
